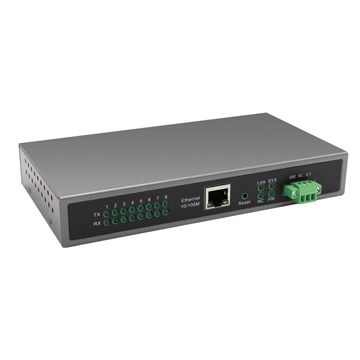

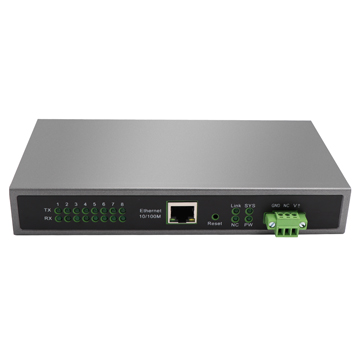

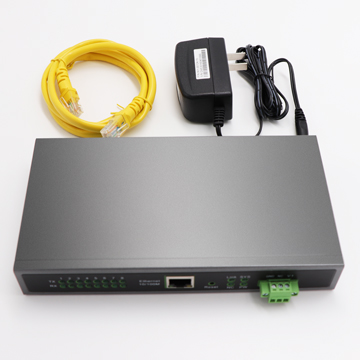

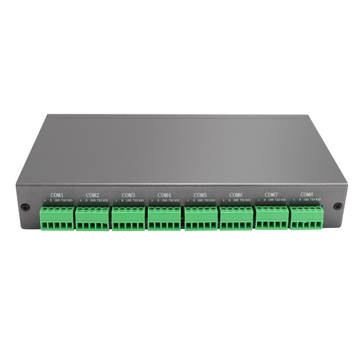

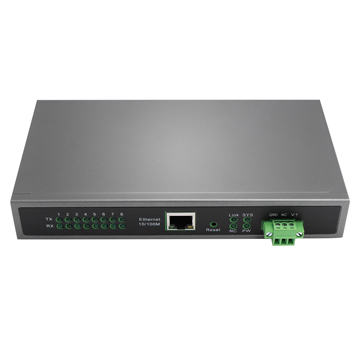

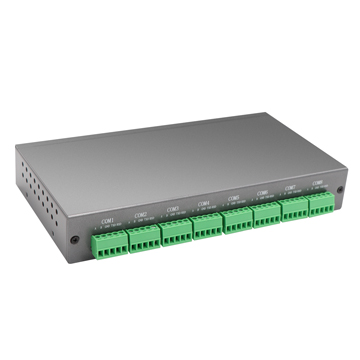

8 Ports Desktop Serial Device Server
- 产品概述
- 技术参数
- 订购信息
- 应用案例
- 产品尺寸
- 相关下载
Introduction：
Seriallink SLK-S508D Serial Device Server is a multi-channel decentralized device with low-speed, different standards converted into Ethernet for centralized management. After installing virtual serial port, remote reading of serial data can be achieved. SLK-S508D Series Serial Device Server supports a variety of working modes, including TCP server mode, TCP client mode, UDP mode, TCP/UDP Socket, TCP Realport and other working modes, allowing user software to access serial devices through TCP plus port number. In addition, virtual serial port is also supported to access serial devices. Seriallink SLK-S508D supports easy and fast manual configuration of IP addresses through browsers or Telnet terminals. At the same time, users can automatically search serial device server in local area network through simple and easy-to-use Windows management software, and carry out remote configuration management and work status monitoring applications.
Features:
● 1 x self-adapted 10/100M Ethernet
● 8 x R232 /485 interface
● DC DC isolated protection
● TVS protection
● Optical isolated protection
● ESD protection
● Multiple Working Mode: TCP server, UDP optional
● WEB & Telnet configuration support
● Multiple Power Version: 12V (DC12-28V)
● Size (mm): 186.5(L)X100.8(W)X30.2(H)
技术参数
|
Items |
Description |
|
Model |
SLK-S508D Series |
|
CPU |
32bit, 400 MHZ |
|
Memory |
64M RAM, 8M Flash |
|
Ethernet Interface |
Numer of Ports: 1 |
|
Speed: 10/100 Mbps, auto MDI/MDIX |
|
|
Connector: 8-pin RJ45 |
|
|
Magnetic Isolation Protection: 2.4 kV built-in |
|
|
Default IP address: 192.168.0.233 |
|
|
Serial Interface |
Number of ports: 8 |
|
Connector: terminal |
|
|
Serial Signal: RS-232:TxD/RxD/ GND RS-485-2w: Data+, Data-, GND |
|
|
Serial Communication Parameters |
Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF Baud Rate: 300bps to 460.8 kbps |
|
Serial Line Protection |
RS232/485 with 15 kV ESD protection for all signals |
|
RS232/485 with optical isolated protection |
|
|
RS232/485 with TVS protection |
|
|
RS232/485 with DC DC isolated protection |
|
|
RS-485 terminal resistance: 120 Ω |
|
|
Software
|
Network protocols: TCP, UDP, DHCP ,DNS |
|
Configuration option: Web console |
|
|
Working mode: TCP Server, TCP client, |
|
|
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64) |
|
|
Physical Characteristics |
Material: iron |
|
Dimension with mounting kit: 186.5 x 100.8x 30.2mm |
|
|
Temperature |
Operating Temerature: -40 to 65°C (-40 to 167°F) |
|
Storage Temerature: -40 to 75°C (-40 to 167°F) |
|
|
Ambient Relative Humidity: 5 to 95% (non-condensing) |
|
|
Power |
Input Voltage: +12V (DC12V-28V) |
|
Warranty |
2 years |
订购信息
SERIALLINK SLK-S508D series:
|
Model NO. |
Description |
|
SLK-S508D_12V(Desktop Serial Device Server)
|
RS232/485 with opto-isolated protection RS232/485 with DC to DC isolation protection RS232/485 with TVS protection RS232/485 with 15 kV ESD protection |
应用案例
产品尺寸
相关下载
- Seriallink_SLK-S508D 8 Ports Serial Device Server Datasheet [2021-08-05] | 直接下载
